HA Configure
DeepFinder HA Configuration
DeepFinder Manager supports HA (High Availability) configuration for the Server and PostgreSQL, allowing the Standby server to take over immediately in case of an Active server failure.
When HA is configured, if the Active server fails (due to network disconnection, hardware failure, etc.), the Standby server will automatically failover to become the Active server, and all Agents will re-establish communication with the new Active server.
Server Process HA Configuration
1) Download the installation file
Download the DeepFinder Manager Server installation file from the repository.
[root@localhost~]# wget http://download.deepfinder.co.kr/DeepFinder/dfServer/DFServer.tar.gz2) Decompress the file
Decompress the downloaded installation file.
[root@localhost~]# tar xvfz DFServer.tar.gz3) Run the script
Navigate into the decompressed DFServer directory and run the installation script.
[root@localhost~]# cd DFServer
[root@localhost~]# ./setup.sh
CHECK OS BIT : x86_64 (64 bit)
CHECK OS : Linux
CHECK LINUX : Unknown Linux
Failed to enable unit: Unit file deepfinder.service does not exist.
request license with this info
INFO : IP : 192.168.3.58
INFO : Mac : BC:24:11:6D:50:52
1. modify config.xml
2. cp license.txt /usr/local/dfserver/license/
3. service dfserver startServer Active Installation
[root@localhost DFServer]# ./ha.sh master 192.168.3.8
Redirecting to /bin/systemctl restart dfserver.service
Server Standby Installation
[root@localhost DFServer]# ./ha.sh slave 192.168.3.58
Redirecting to /bin/systemctl restart dfserver.service
Postgres HA Configuration
1) Open Postgres Port
To allow PostgreSQL communication between the Active and Standby servers, you must allow TCP Port 5432 as Inbound in the firewall of each server.
Danger
When opening Inbound port 5432, you must configure the security policy to allow traffic only from the IP address of the other server.
2) Postgres Active Server Installation
[root@localhost DFDB]# ./setup_postgres.sh master
installing... /usr/local/dfserver/postgres
Started DeepFinder Server DB installation.
Copying ./postgres ...
Create system account user 'postgres' ...
Make postgres startup script for DeepFinder ...
Startup postgres for DeepFinder ...
The files belonging to this database system will be owned by user "postgres".
This user must also own the server process.
The database cluster will be initialized with locale "ko_KR.UTF-8".
initdb: could not find suitable text search configuration for locale "ko_KR.UTF-8"
The default text search configuration will be set to "simple".
Data page checksums are disabled.
fixing permissions on existing directory /usr/local/dfserver/postgres/data ... ok
creating subdirectories ... ok
selecting default max_connections ... 100
selecting default shared_buffers ... 128MB
selecting dynamic shared memory implementation ... posix
creating configuration files ... ok
running bootstrap script ... ok
performing post-bootstrap initialization ... ok
syncing data to disk ... ok
3) Postgres Standby Server Installation
[root@localhost DFDB]# ./setup_postgres.sh slave 192.168.3.58
installing... /usr/local/dfserver/postgres
Started DeepFinder Server DB installation.
Copying ./postgres ...
Create system account user 'postgres' ...
Make postgres startup script for DeepFinder ...
Startup postgres for DeepFinder ...
The files belonging to this database system will be owned by user "postgres".
This user must also own the server process.
The database cluster will be initialized with locale "ko_KR.UTF-8".
initdb: could not find suitable text search configuration for locale "ko_KR.UTF-8"
The default text search configuration will be set to "simple".
Data page checksums are disabled.
fixing permissions on existing directory /usr/local/dfserver/postgres/data ... ok
creating subdirectories ... ok
selecting default max_connections ... 100
selecting default shared_buffers ... 128MB
selecting dynamic shared memory implementation ... posix
creating configuration files ... ok
running bootstrap script ... ok
performing post-bootstrap initialization ... ok
syncing data to disk ... ok
4) Modify pg_hba.conf
To allow PostgreSQL communication between the Active and Standby servers, you must modify the pg_hba.conf file on both servers.
In each server's pg_hba.conf file, add the IP address of the other server as a host entry.
After modifying, restart the dfserver-postgres service to apply the changes.
[root@ip-172-31-12-31 ~]# cat /usr/local/dfserver/postgres/data/pg_hba.conf
# TYPE DATABASE USER ADDRESS METHOD
# "local" is for Unix domain socket connections only
host all all 172.31.12.32 trust # DeepFinder HA communication (IP of the other server)
local all all trust
# IPv4 local connections:
host all all 127.0.0.1/32 trust
# IPv6 local connections:
host all all ::1/128 trust
# Allow replication connections from localhost, by a user with the
# replication privilege.
local replication all trust
host replication all 127.0.0.1/32 trust
host replication all ::1/128 trust
[root@ip-172-31-12-31 ~]# service dfserver-postgres restart
Stopping PostgreSQL 10.5:
waiting for server to shut down.... done
server stopped
Starting PostgreSQL 10.5:
waiting for server to start.... done
server started
PostgreSQL 10.5 started successfullyLicense Verification
Check Manager License

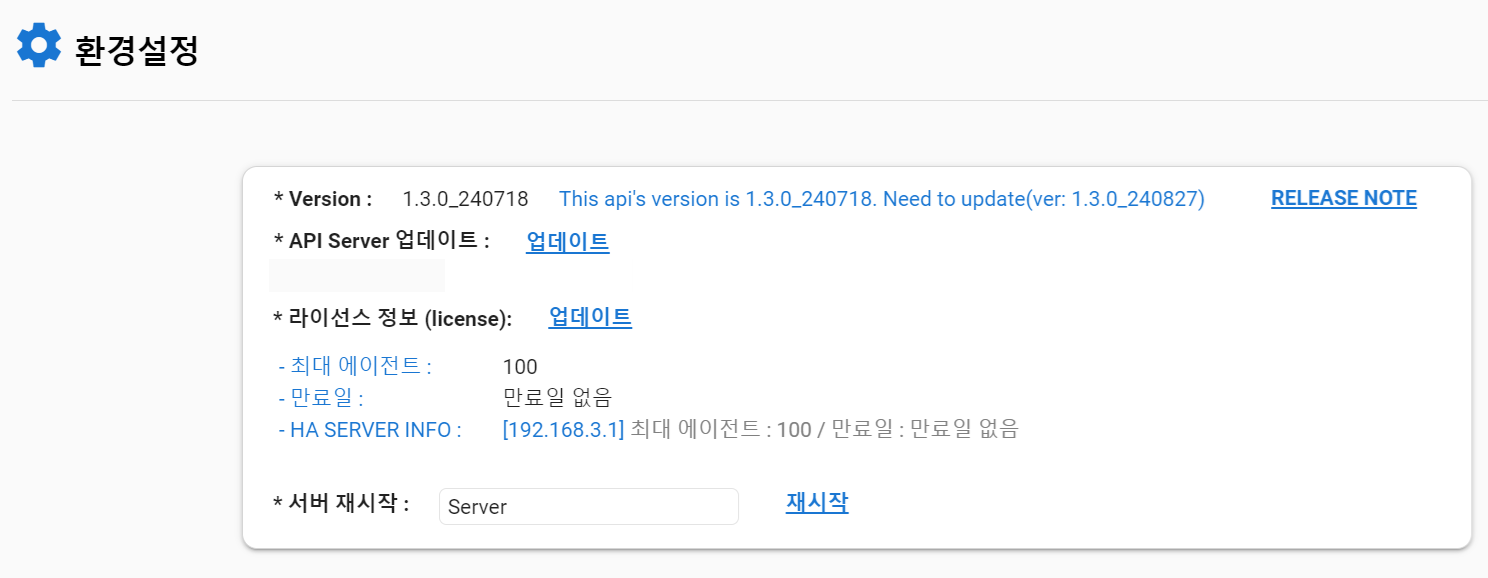

Once the Manager HA configuration is complete, an 'HA Server Info' item will be displayed in the license information under [Environment Management] - [Environment Settings].
