DASHBOARD

The dashboard provides statistical data collected from the operation of the DeepFinder Manager and Agents in real time. The dashboard is divided into System and Log dashboards, and the graphs in each chart can be saved as image files.

SYSTEM

[DASHBOARD] > [SYSTEM] > (Select condition)

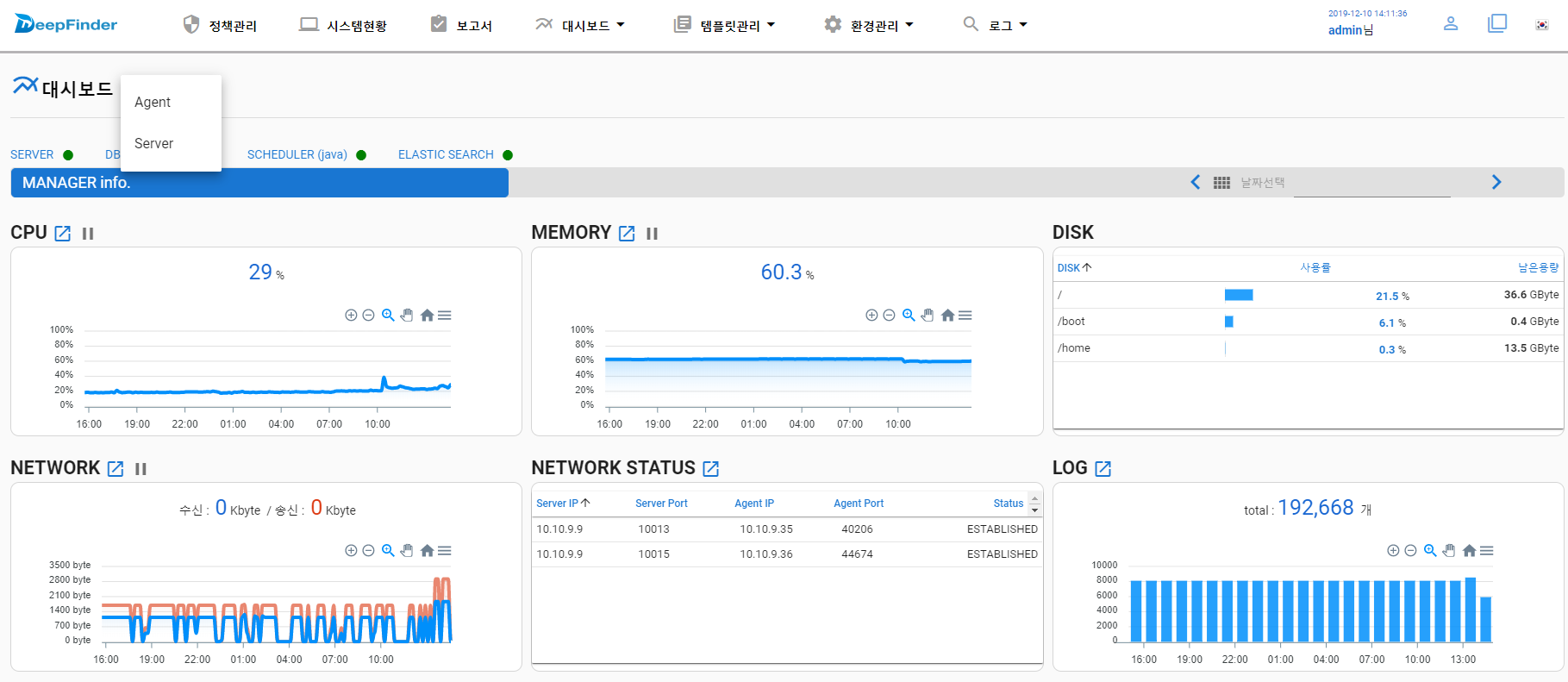

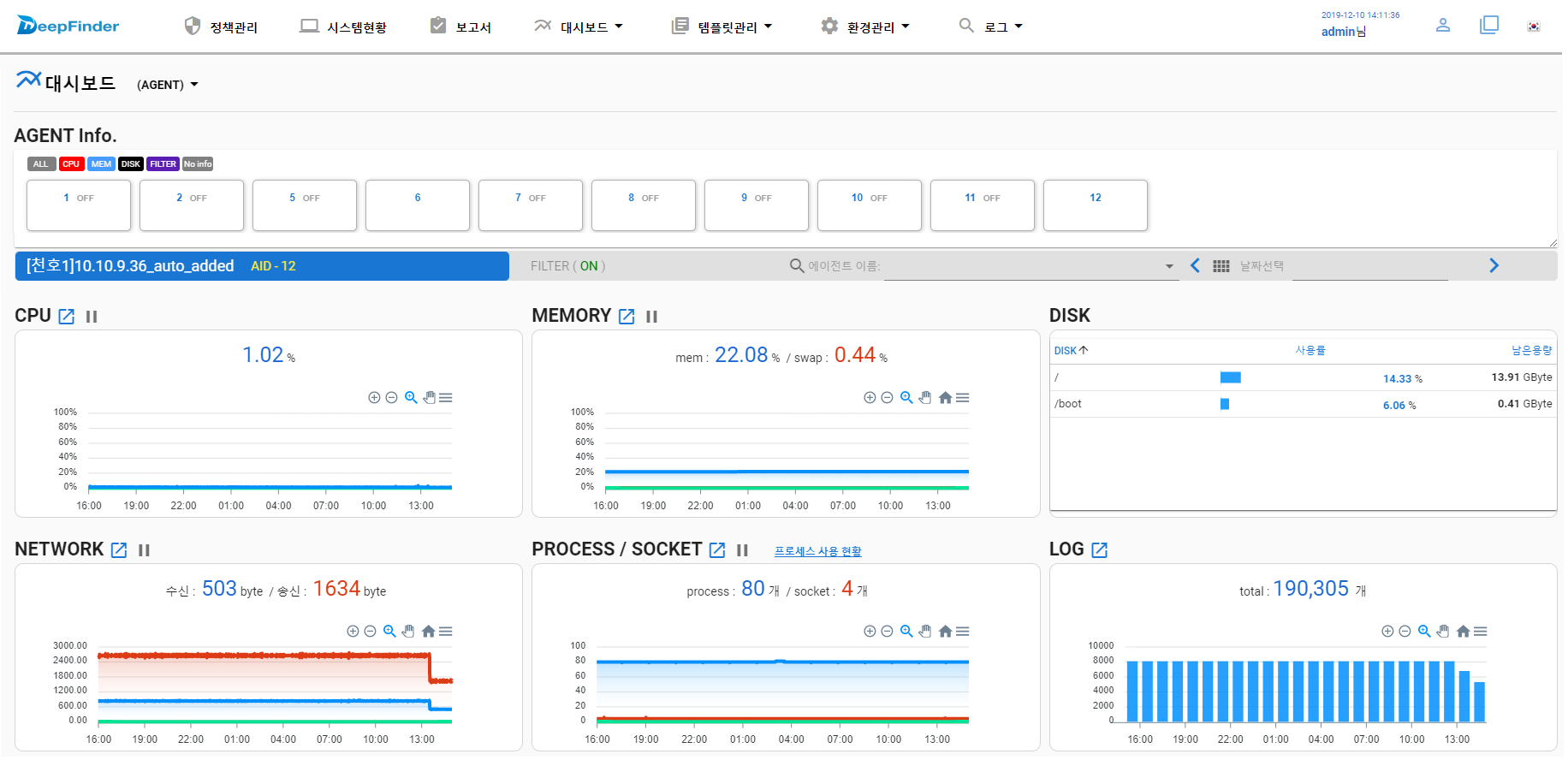

The System Dashboard displays the real-time system resource status of the Manager or individual Agents. It updates the status of abnormal Agents every minute based on system thresholds. Each chart displays trends for CPU, Disk, Memory, Network, Process, and Logs over the last 24 hours.

Item	Description
CPU	Displays the CPU usage trend for the last 24 hours.
MEMORY	Displays the Memory usage trend for the last 24 hours.
DISK	Displays the Disk usage trend for the last 24 hours.
NETWORK	Displays the Network usage trend for the last 24 hours.
PROCESS / SOCKET	Displays the Process/Socket usage trend for the last 24 hours.
LOG	Displays the total log generation status for the last 24 hours, updated hourly.

LOG

[DASHBOARD] > [LOG] > (Select condition)

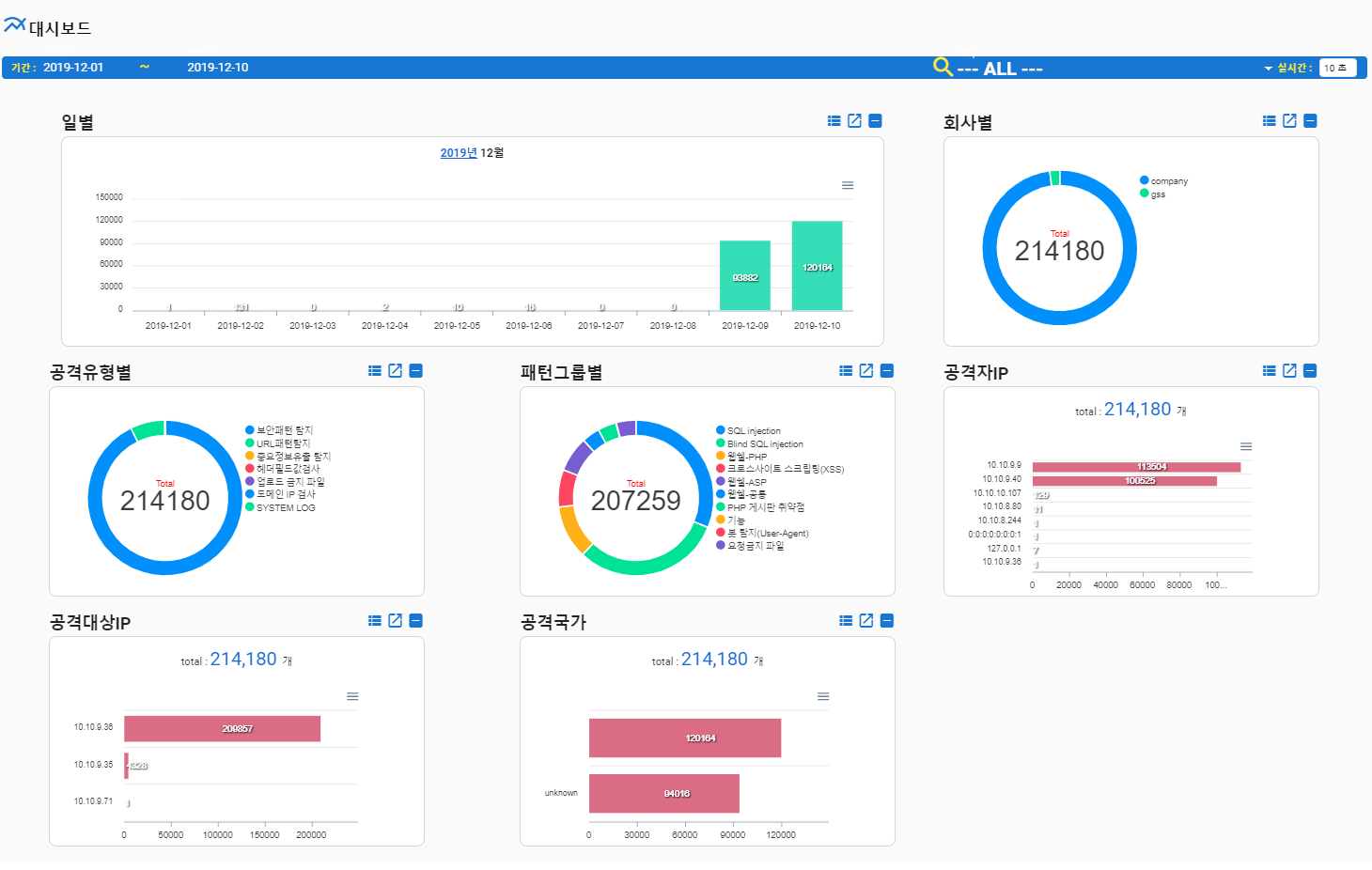

This dashboard visualizes the statistical status of detection logs collected by the Manager. You can filter data by attack targets, such as a specific company, domain group, or URL, as well as view the overall log status. It provides real-time aggregated data based on various criteria, including time period, attack type, attacker IP, and attack country.
