IP Exception

Domain IP Policy Settings (Block and Allow)

1. Create IP Template

1-1) Create IP Group

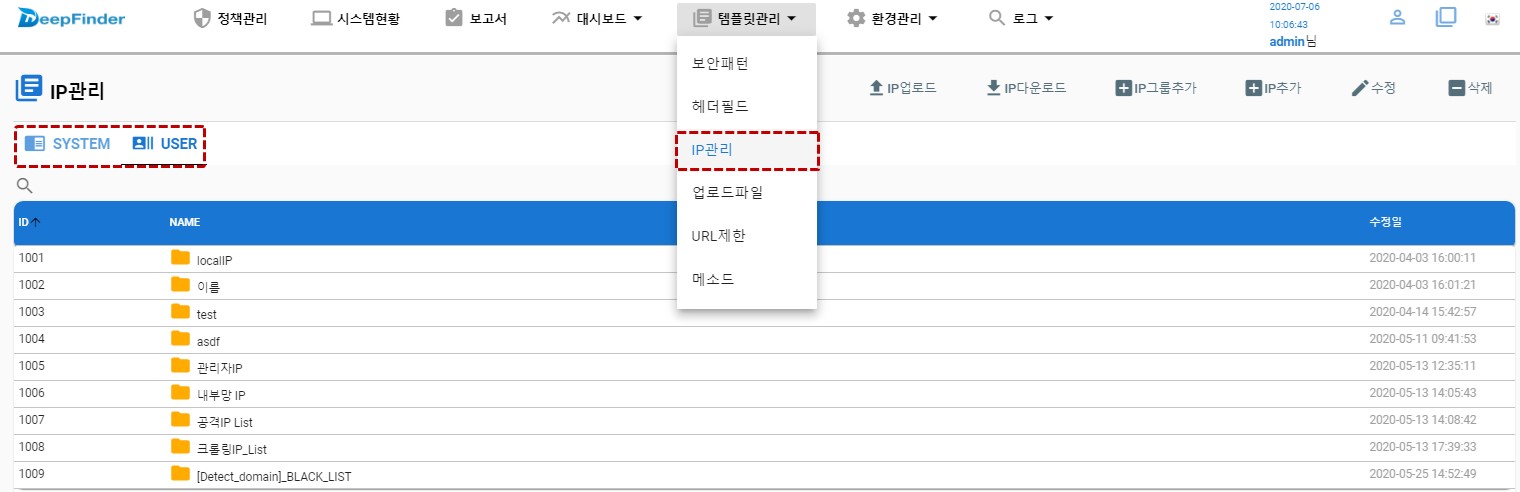

Create an IP group to be used in the policy from the [TEMPLATE] > [IP] menu.

Item	Description
SYSTEM	Blocking groups provided by default in the system, such as country-specific IP ranges
USER	IP groups defined and created directly by the user

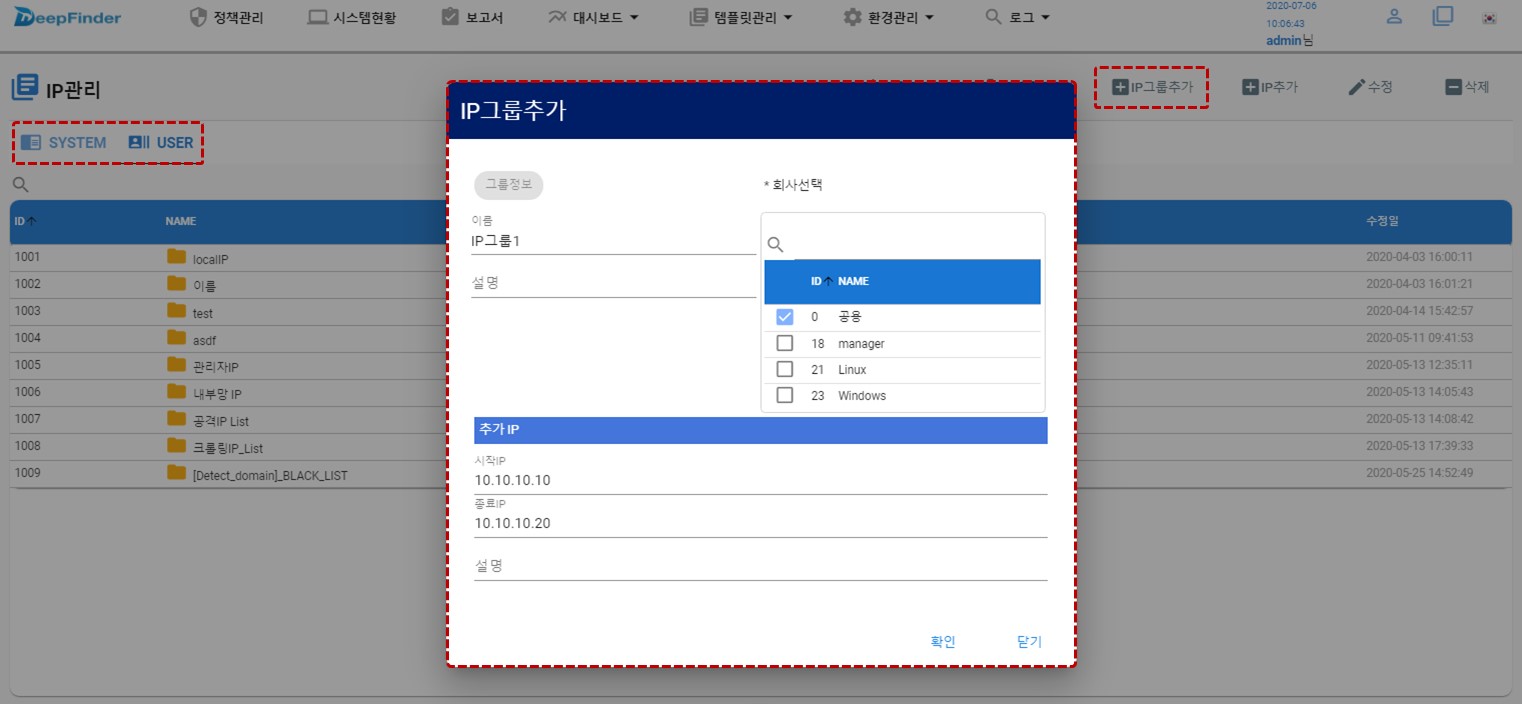

1-2) Detailed IP Group Settings and Adding IPs

Create a new IP group and add the IP addresses to be included in that group.

Range IP Setting: Start IP ~ End IP     Single IP Setting: Start IP = End IP

2. Applying Whitelist/Blacklist Policies Using Created Templates

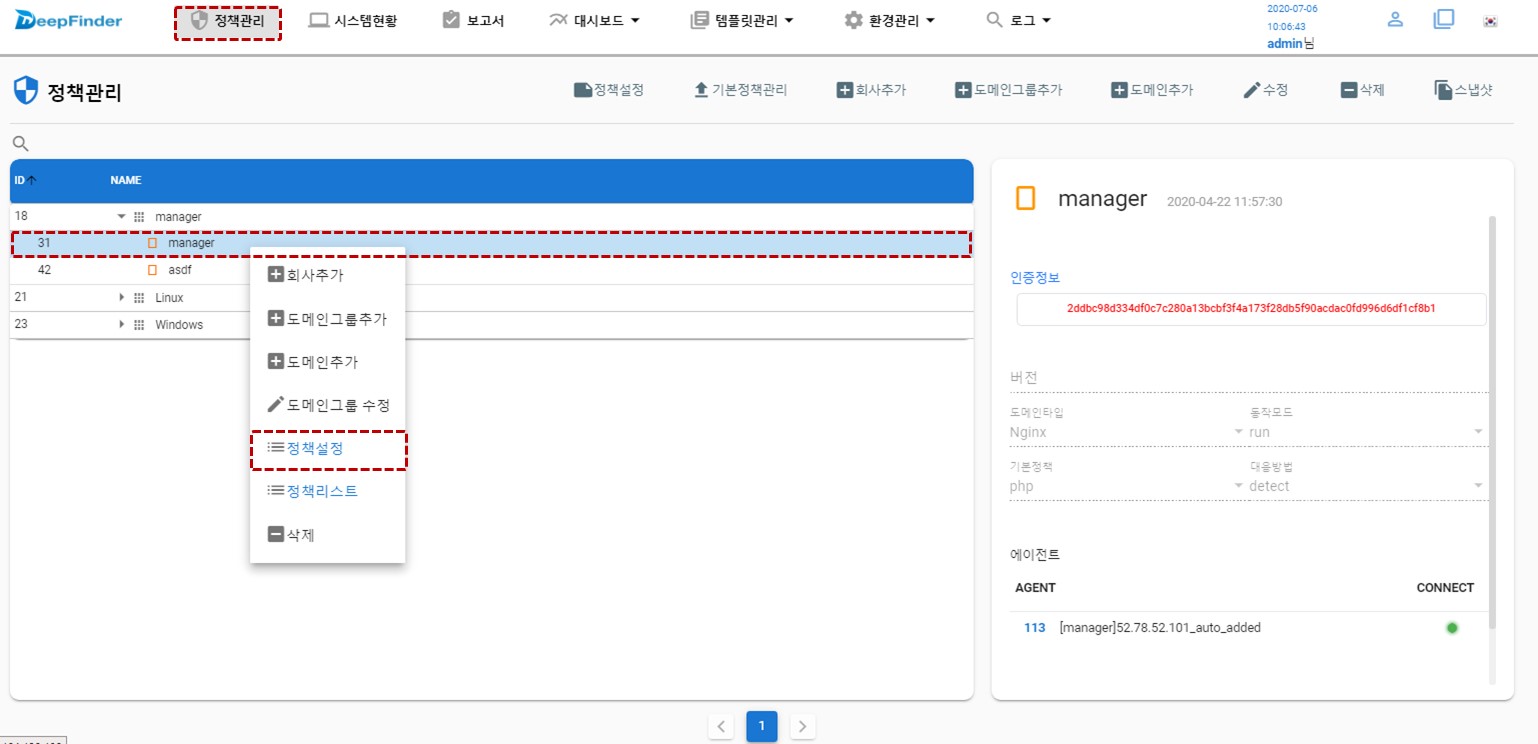

2-1) Access Policy Settings Menu

Go to the [POLICY] > (Select Domain Group) > [SET POLICY] menu.

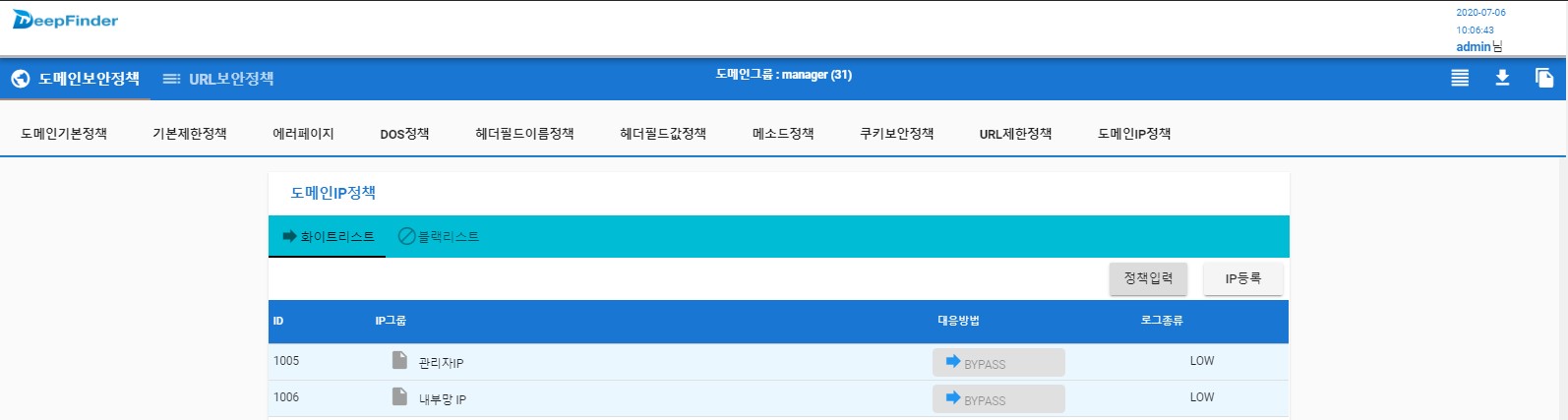

2-2) Select Domain IP Policy

Select [DOMAIN IP POLICY] from the menu on the left.

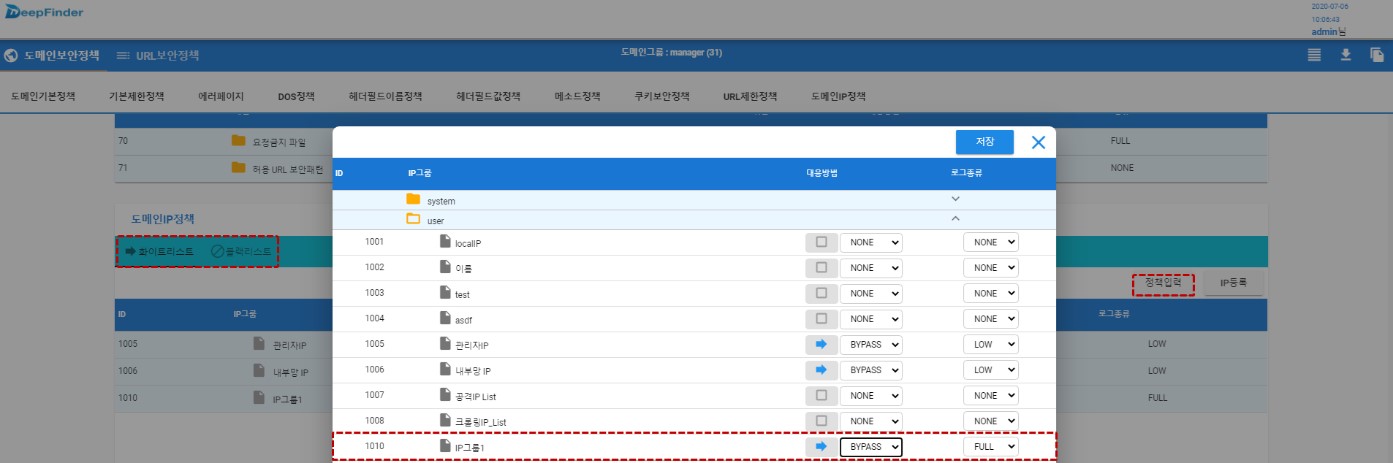

2-3) Whitelist (Allow) Settings

Select the IP group to allow access and set the action to ALLOW.

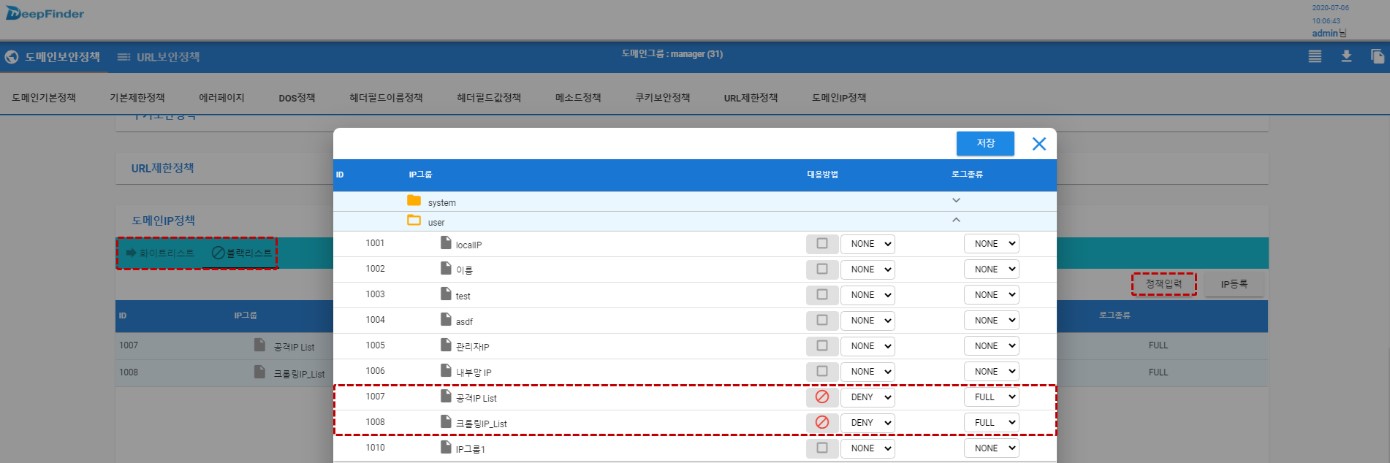

2-4) Blacklist (Deny) Settings

Select the IP group to block access and set the action to DENY.

• After completing the settings, generate forced traffic to verify if block/allow logs are recorded to ensure normal application.

3. Instant Block/Allow Registration from Detection Logs (Easy Registration)

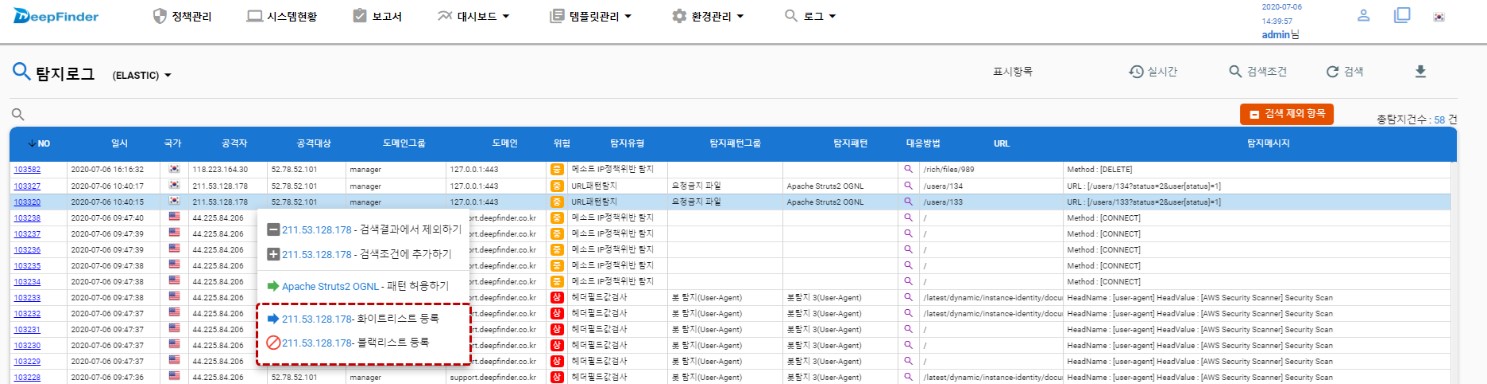

3-1) Use Log Right-Click Menu

Select the log (IP) to register to the whitelist/blacklist from the detection log list, and click the right mouse button to register.

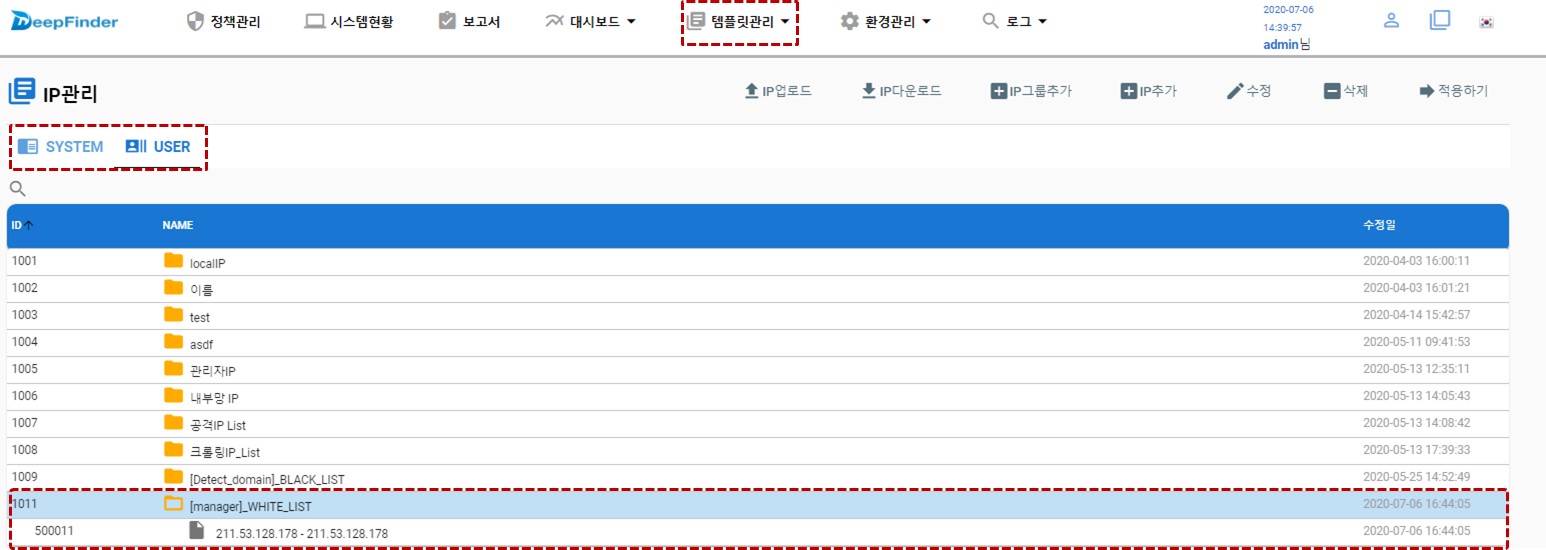

3-2) Check Registration Result

Check if the IP has been successfully added to the group in the [TEMPLATE] > [IP] > [User] section.
